Explainable AI for Image Classification using Twin System and Grad-CAM

Explainable AI for Image Classification using Twin System and Grad-CAM

Introduction

Explainable Artificial Intelligence (XAI) is essential for making ML models more interpretable and trustworthy, particularly in opaque or high-stakes domains. This project applied two complementary post-hoc explanation methods to a binary classification task , distinguishing between real and AI-generated (fake) cat images.

The goal:

  1. Train a high-performing ResNet-18-based image classifier.
  2. Explain its predictions using visual and example-based techniques.

XAI Techniques Used

Grad-CAM (Gradient-weighted Class Activation Mapping)

Grad-CAM generates heatmaps showing which regions of an image influence the model’s prediction. It works by backpropagating gradients to the final convolutional layer.

Purpose: Visual explanation of what the model is attending to.

Grad-CAM Paper


Twin System (Embedding Similarity via Case-Based Reasoning)

This method explains predictions by retrieving visually similar images from the training set. Embeddings are extracted from the penultimate layer of ResNet-18, and cosine similarity is used to find the top matches.

Purpose: Intuitive justification by referencing known cases.

Inspired by: This Looks Like That (2018)


Dataset

  • Total Images: 300
  • Preprocessing: Resized to 224x224, normalized (mean=0.5, std=0.5)
  • Split:
    • Train: 100 real + 100 fake
    • Validation: 50 real + 50 fake

Model Architecture

  • Base Model: Pretrained ResNet-18
  • Final Layer: Modified for 2-class output
  • Training Setup:
    • Optimizer: Adam (lr=1e-4)
    • Loss: CrossEntropyLoss
    • Epochs: 10
    • Batch Size: 32

Final Validation Accuracy: 91%


Evaluation Metrics

MetricValue
Accuracy91%
Precision (Real)0.94
Recall (Real)0.88
Precision (Fake)0.89
Recall (Fake)0.94
F1 Score (Overall)0.91

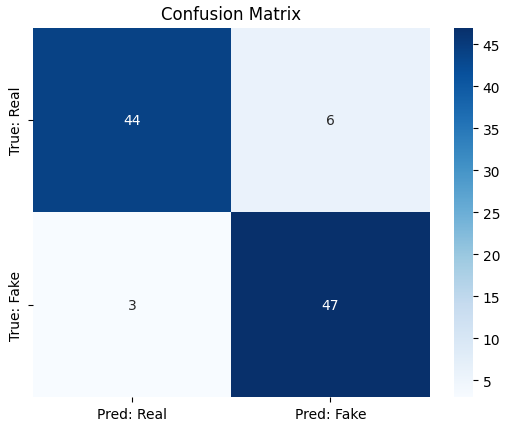

Confusion Matrix

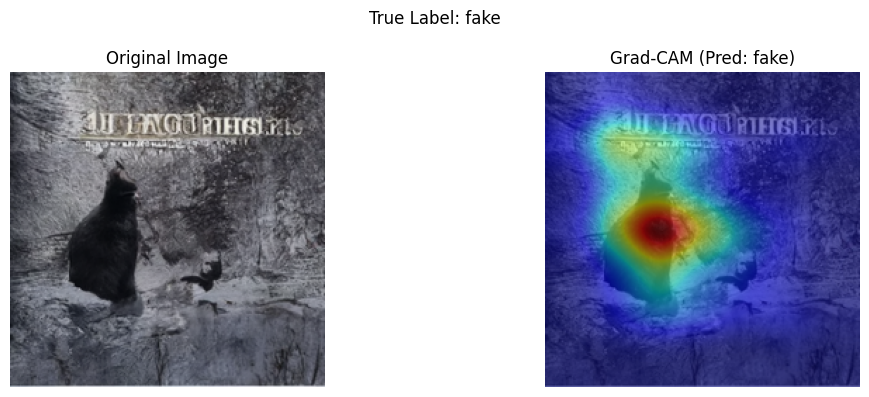

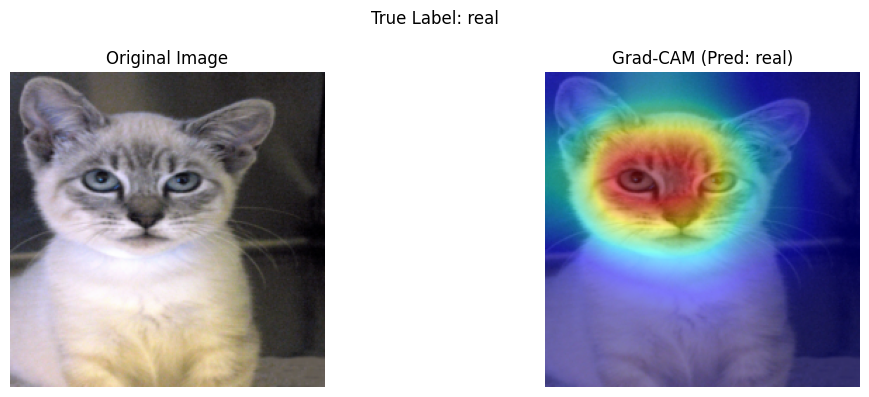

Grad-CAM Results

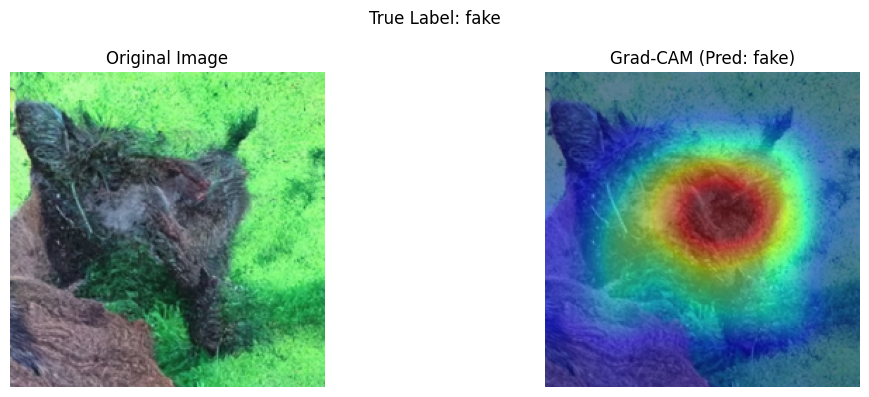

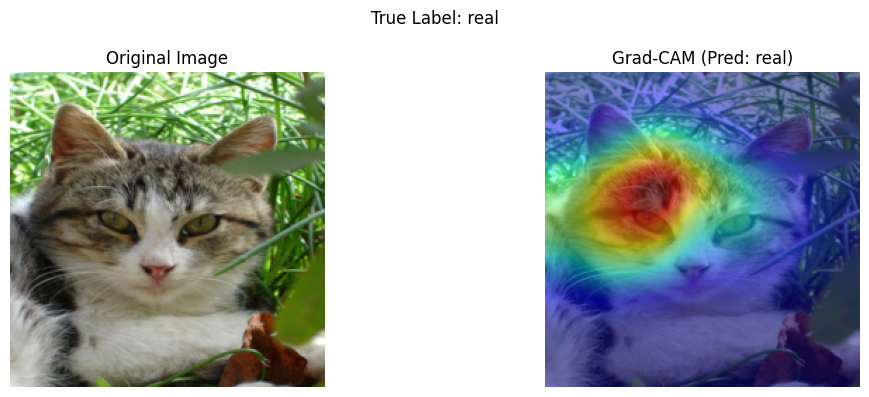

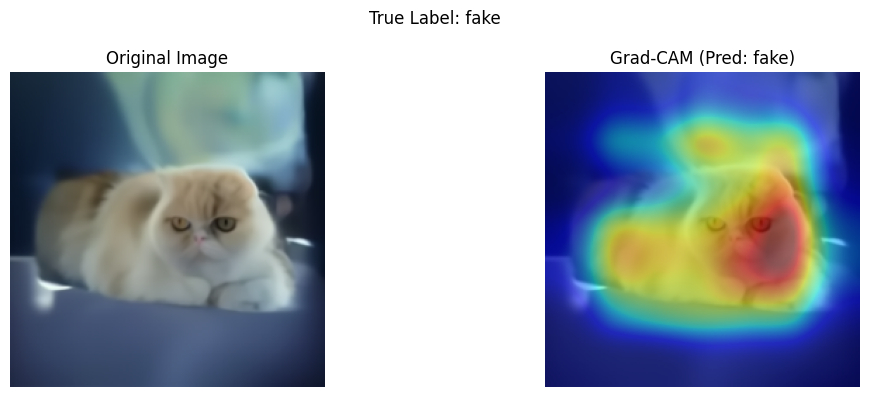

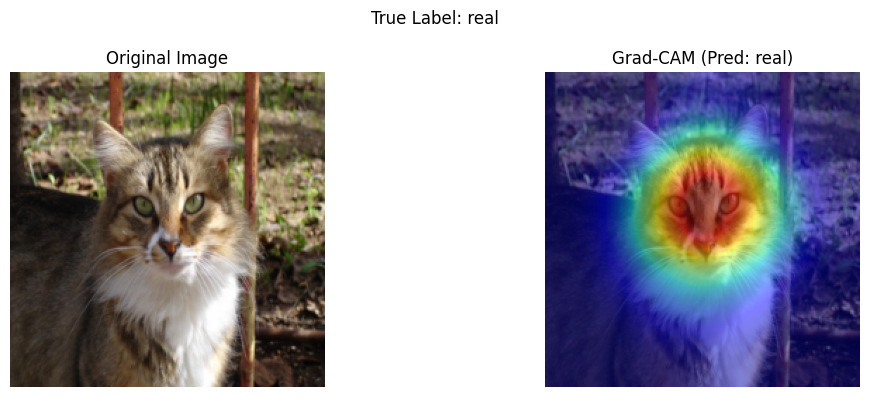

Sample saliency visualizations show which parts of the input image the model focused on:

Key insights: model focuses on fur texture, eyes, and facial shape for classification.

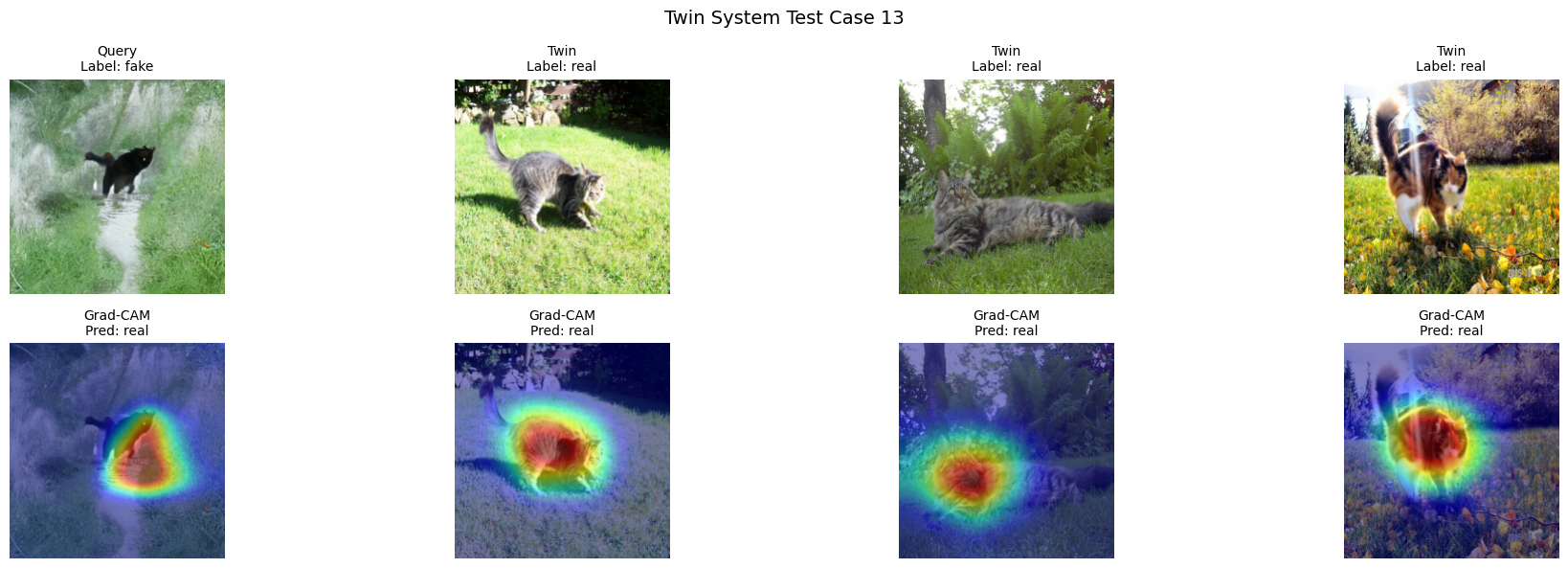

Twin System Results

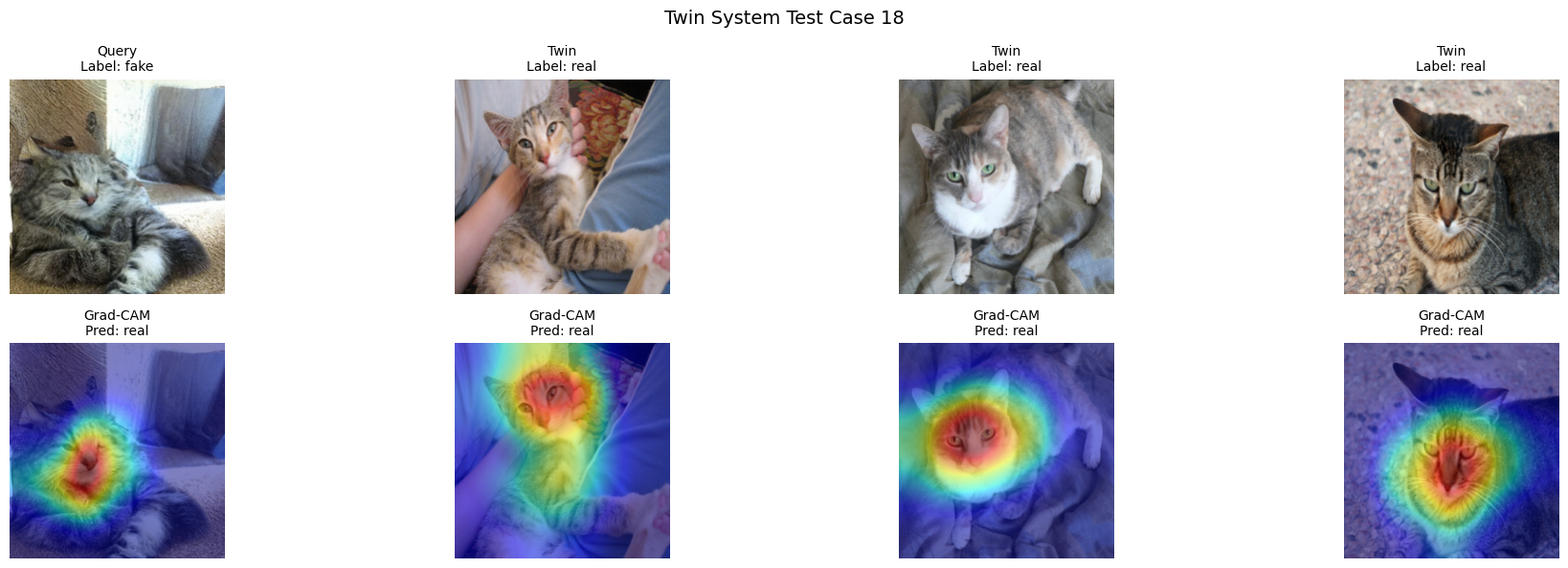

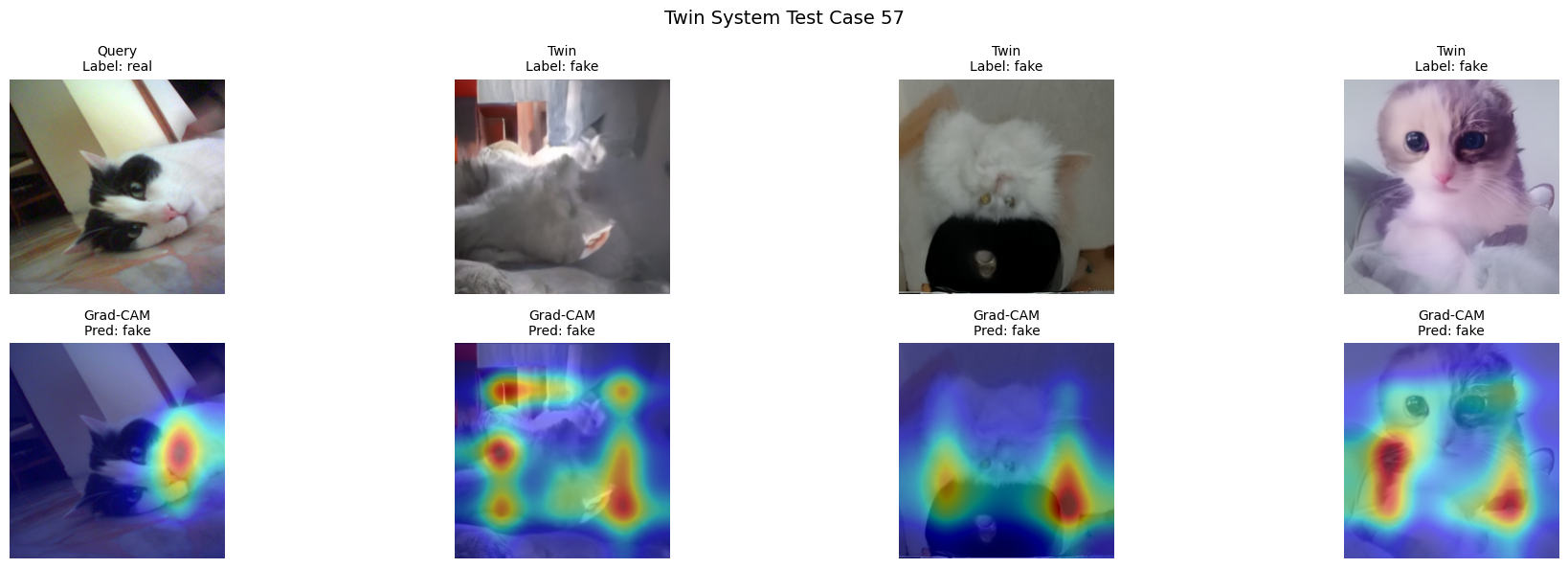

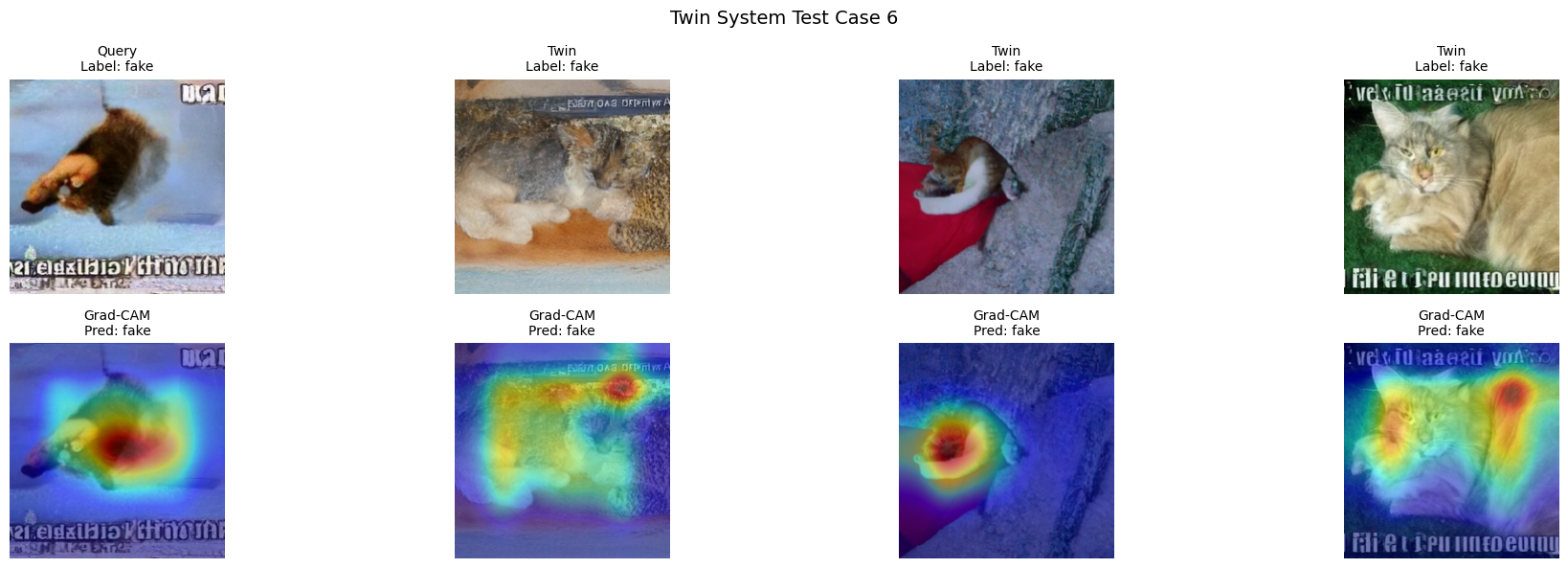

Shows most similar training samples (same predicted class) based on ResNet embeddings:

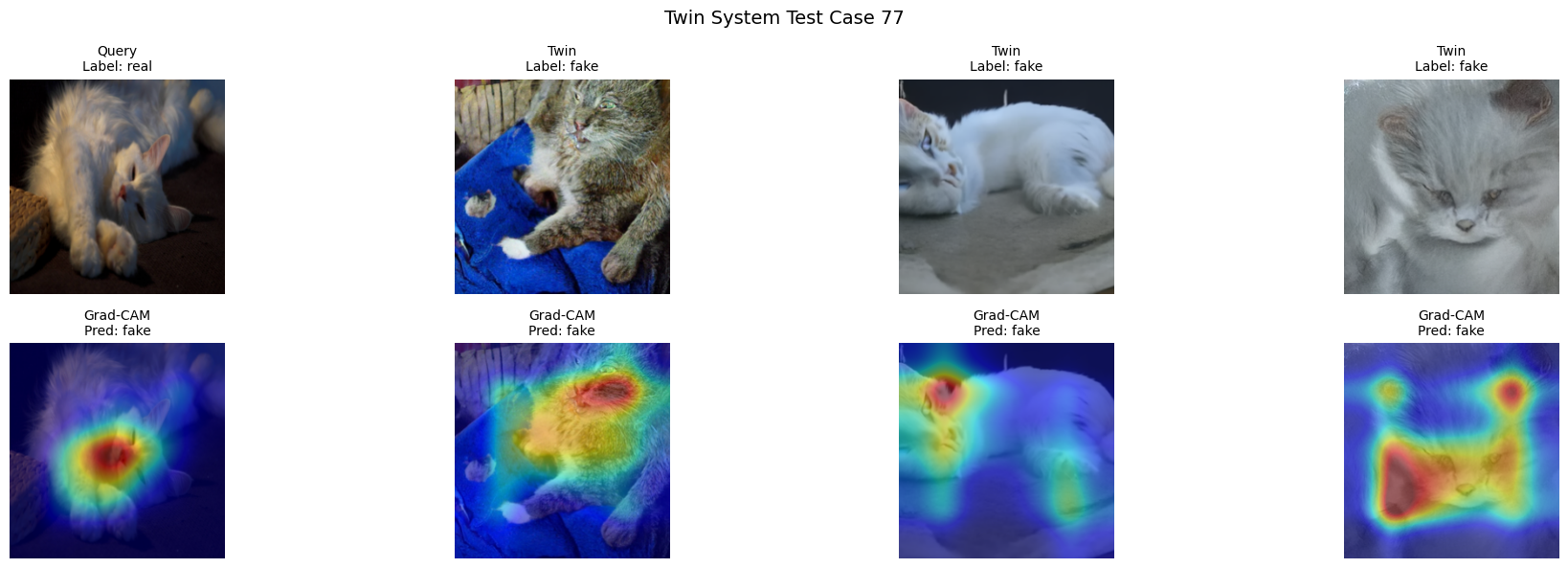

Misclassification Analysis

Error TypeSample IDs
Real → Fake (FN)13, 18, 22, 34, 40, 44
Fake → Real (FP)57, 77, 80

Grad-CAM and Twin visualizations revealed blur and atypical poses as key contributors to misclassification.


Conclusion

This project combined two explainability approaches to enhance understanding of model behavior.

MethodExplanation TypeContribution
Grad-CAMVisual (pixel)Shows where the model looks
Twin SystemExample-basedShows why via similar cases

Multi-view XAI builds trust and insight into deep learning models.


Future Work

  • Add counterfactual examples (nearest from opposite class)
  • Use CLIP embeddings for better semantic similarity
  • Improve Twin system via ProtoPNet architecture

ProtoPNet Attempt

  • Backbone: ResNet-18
  • Added 10 learnable prototypes per class
  • Goal: Learn and match local image regions

Validation Accuracy: 50%
Problem: Overfit to “real” class due to prototype imbalance

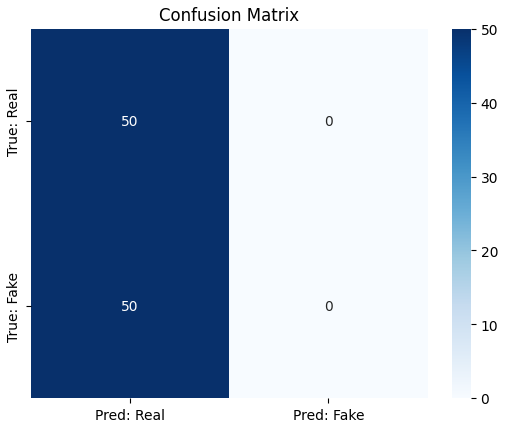

Proto Confusion Matrix

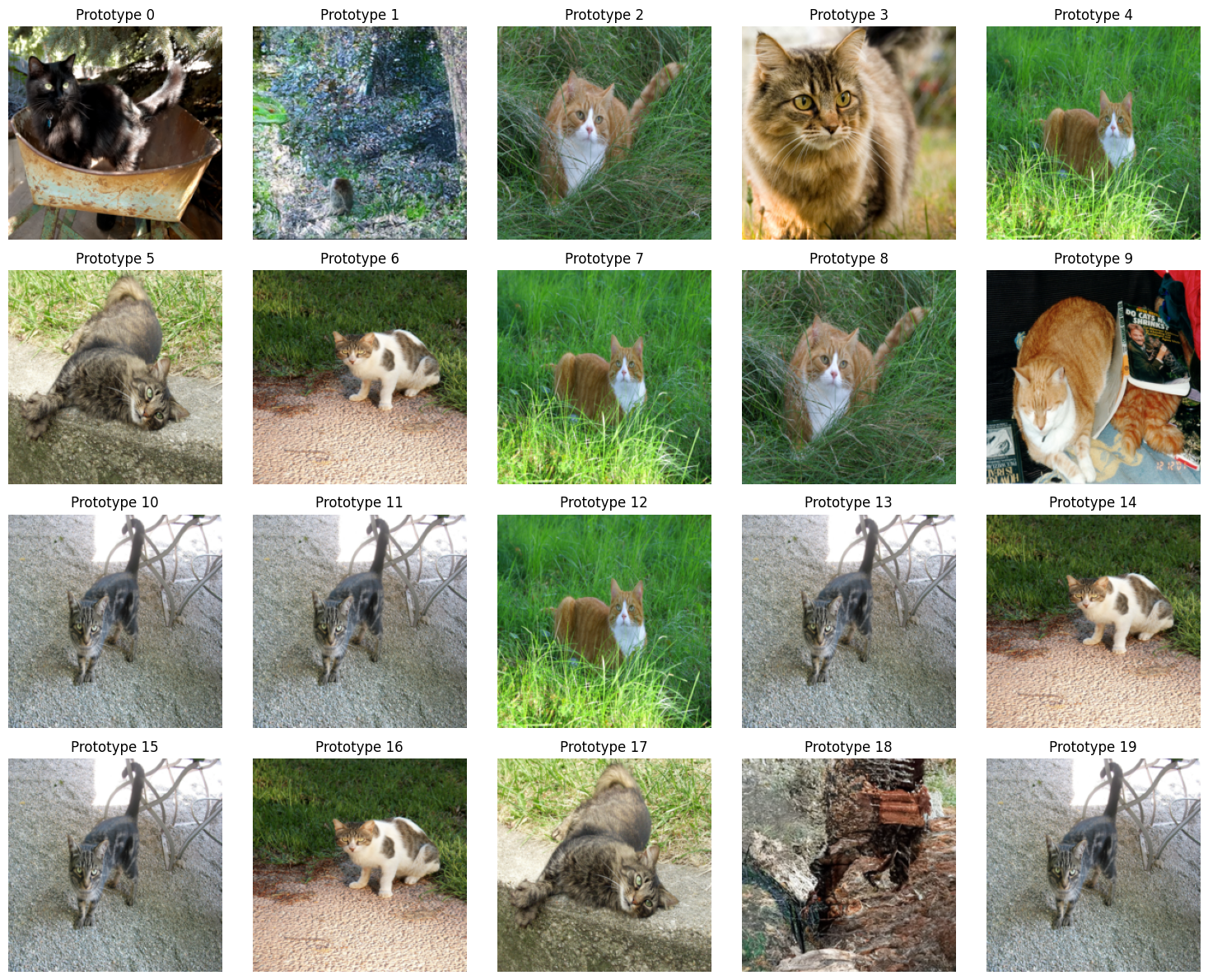

Learned Prototypes:

ProtoPNet Prototypes

Although accuracy was low, the model successfully:

  • Learned and projected prototypes
  • Visualized most activating examples
  • Demonstrated potential for local-region interpretability

References
